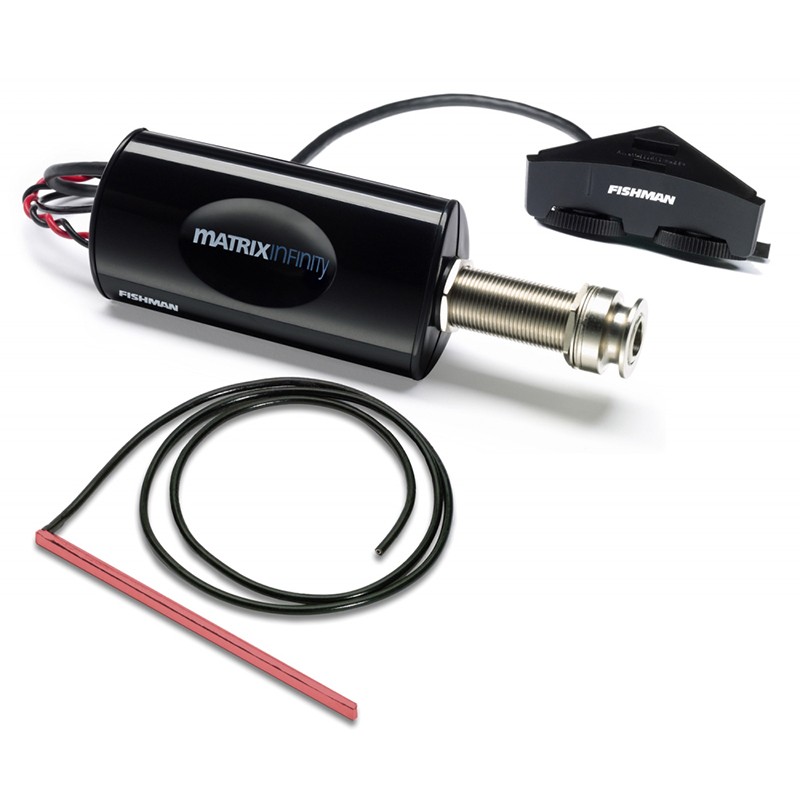

Matrix Infinity – Split Format / Active system

The Matrix Infinity pickup and preamp system is the newest version of our flagship Matrix Series and offers clear, transparent tone, dynamic string response, and ease of installation. Easily accessible soundhole-mounted Volume and Tone rotary controls allow the player to effortlessly make adjustments to their sound.
Matrix Infinity features:

• Completely redesigned active, endpin-mounted preamp
• Soundhole-mounted rotary controls for Volume and Tone
• Unique Tone control cuts mids while boosting treble and bass
• Integrated LED low battery indicator
• Features the world’s best-selling undersaddle pickup, the Acoustic Matrix
• Switchable voicing to accommodate all guitar body sizes and performance situations
• Solderless connections
• Professional installation is recommended
• Requires 9-volt battery (not included)
• Available in two saddle slot widths: Wide 1/8″ (3.2 mm) format or narrow 3/32″ (2.3 mm) format
• Guitar versions have a standard overall length of 2.65″(67.3 mm), and will fit most guitars with string spacings of up to 2.5″ (63.5 mm)
• Ukulele version has a standard pickup length of 2” (50.8 mm) and will fit most ukuleles with up to 1.85”(47 mm)

SPECS

WIDE FORMAT:	PRO-MAT-INF
NARROW FORMAT:	PRO-MAN-INF
SPLIT FORMAT:	PRO-MAL-INF
UKULELE FORMAT:	PRO-MAK-INF
GUITAR PICKUP:	Standard pickup length of 2.65″ (67.3 mm) will fit most guitars with 2.5″ (63.5 mm) string spacings
UKULELE PICKUP:	Standard pickup length of 2″ (50.8 mm) will fit most ukuleles up to 1.85″ (47″mm) string spacings
BATTERY:	9-Volt
BATTERY LIFE:	384 hours
